RTX 3060 Overclock Settings | Ethereum Mining

RTX 3060 Overclock Settings mining

To attain the maximum hashrate for mining any cryptocurrency, you gonna have to tweak your GPU overclock settings. Nvidia RTX 3060 is considered a decent GPU for mining popular coins like ethereum, raven, zcash, ergo, ethereum classic etc.

RTX 3060 can achieve around 48-50 Mh/s for almost all the minable coins. However, for mining ethereum, miners will have to make sure of some points to unlock the maximum hashrate for RTX 3060.

You can fully unlock your RTX 3060 for mining ethereum by replacing your current Nvidia drivers with a 470.05 driver version.

After testing out various RTX 3060 Overclock settings for months, we found the optimal configuration for mining. The following settings below are used to mine ethereum for Zotac RTX 3060 12 GB AMP edition equipped with ASUS Prime H410E motherboard.

RTX 3060 MSI AfterBurner Optimal Settings

You can follow these settings to get the maximum hashrate for mining ethereum, ethereum classic, raven coin etc in best efficiency and power consumption.

I personally use T-rex miner for mining ethereum. Although, there are plenty of other miners you can use like phoenix and Claymore.

MSI Afterburner Overclock Settings for mining
hg

For overclocking, I have used MSI Afterburner which gets the job done with ease. These are the overclock settings for RTX 3060 you can configure for your mining rig.

  1. Core clock: -502 Mhz
  2. Memory clock: +1350 Mhz
  3. Power limit: 70%
  4. Temp limit: 65° C
  5. Fan Speed: 80%
RTX 3060 overclock settings

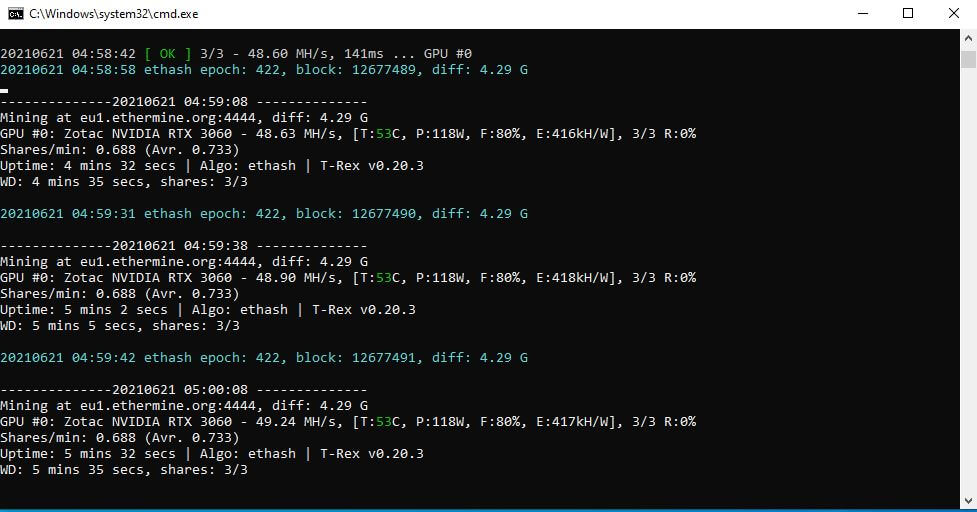

With these configurations, I have not faced any crashes or stale shares throughout the mining process. The results for these settings are:

  • Hashrate: 49.xx Mh/s constant
  • Power: 118 W
  • Temprature: 53-56 C
  • Efficiency: 417 KH/W

Note:

OC settings may perform differently for every RTX 3060 model of various brands depending on their thermal designs.

Anything above that was resulting in either crashes or stale shares every few hours. You can always reduce the fan speed if you aren’t getting above 55 °c. Therefore, try to adjust your OC settings more in a stabilized way to attain a constant hashrate.

Also Read: How to Auto Restart Mining Rig for Windows?

4 thoughts on “RTX 3060 Overclock Settings | Ethereum Mining”

  1. Which Windows 10 Version you have installed?
    i have Windows 10 Pro 64 Bit and with Version 21H1 and the 470,05 Driver is with my Windows not Compatible.

    Please tell me which Version you have installed at the moment you install the 470.05 Nvidia driver?

    thanks

    Reply
  2. Nice config,

    maybe it’s can be better with some changes,

    msi Afterburner
    cpu: -400 mhz
    memory: +1200 mhz
    power: 65%
    fan: 70%
    that config set you to about:
    48,5 mh/s
    110w
    52ºc
    eff: 445Kh/W

    try to don’t fry your card memories just to get 01mh/s, remember it’s long term mining.

    Reply
